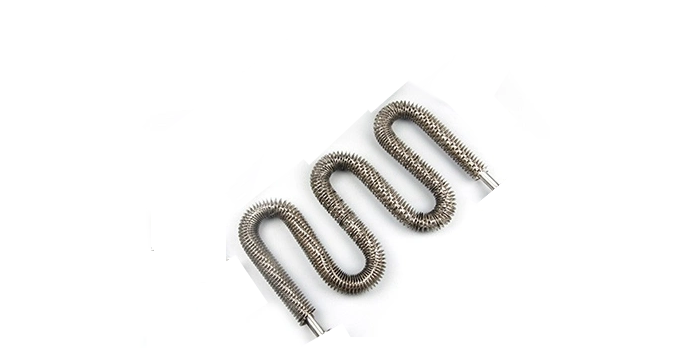

Fin Coil For Multi Shaped Air Heaters

Fin Coil For Multi Shaped Air Heaters

Marathe Engineering Industries offers versatile Fin Coils designed for multi-shaped air heaters, providing exceptional heat transfer efficiency and adaptability. Our fin coils are crafted from high-quality materials, such as stainless steel and copper, ensuring excellent thermal conductivity and durability. These coils are engineered to fit various shapes and configurations, making them ideal for diverse air heating applications in HVAC systems, industrial heating units, and specialized equipment. The meticulously attached fins significantly increase the surface area, optimizing heat exchange and ensuring uniform heat distribution. Customisable to meet specific requirements, our Fin Coils offer tailored solutions for any multi-shape air heating need, delivering reliable and efficient performance. Trust Marathe Engineering Industries for innovative designs and superior quality in Fin Coils for multi-shape air heaters.

These Finned Coils are made according to the OD of the tube with fractional differences ranging from 8 mm to 65 mm.


Technical Details

  • These fin coils are made according to the OD of the tube with fractional differences.
  • Coils suitable for Tube Ods, in mm 8, 8.2, 8.3, 8.5 , 8.6, 9, 9.2, 9.5, 10, 10.2, 10.5, 11, 11.2, 11.5, 12, 12.5, 12.7, 13, 14, 15, 16, 17, 19, 22, 25, 27, 28 and above any size upto 65 mm. Or moreover any size as per client’s requirement.
  • Fin Diameter : Min 20 to max 90 mm. (depending on the tube OD)
  • Fin Spacing : From 2 to 10 fins per inch.
  • Material of construction : Mild steel, Galvanize , Stainless steel, Copper


While Sending enquiries please furnish following details for enabling us to submit you a fair price quotation for required Finned Coils.


  • Heater Tube :
OD
  • Fin :
OD, Material
  • Length :
Required Cut Length
  • Quantity :
Required
